Head-span connection device
It is suitable for electrified railway catenary system in the head-span suspension nominal cross-section of 50 mm2 ~ 80 mm2 metal stranded wire and an external diameter of 8.75 mm ~ 9.5 mm tensioning wire for lower anchor device. It consists of Socket end wedge-type clamp, Wedge-type dead-end clamp, cross link, spring tensioning device, adjustment stud and so on.

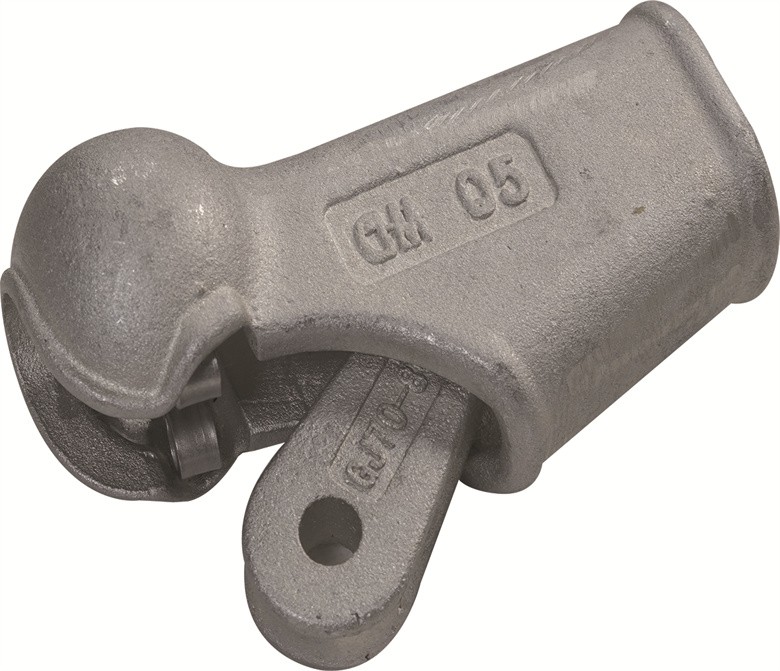

1. Socket end wedge-type clamp

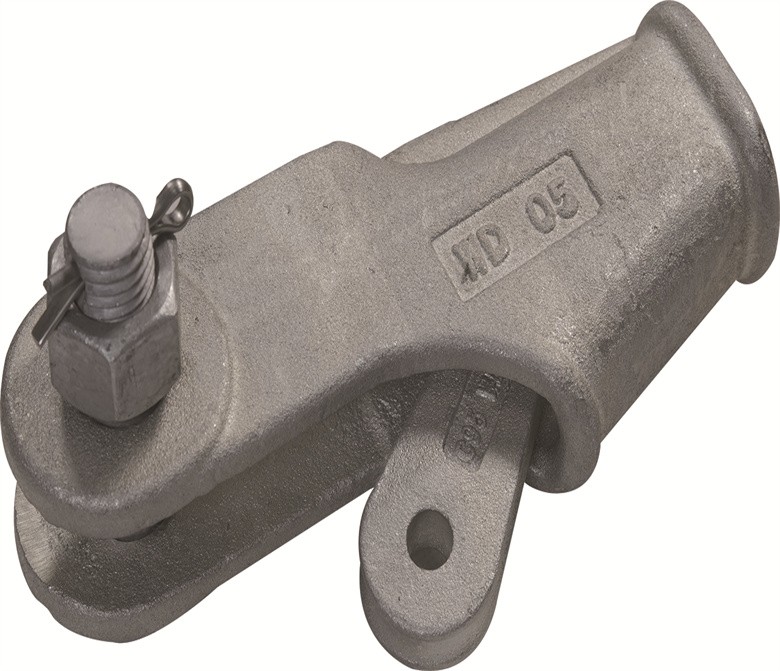

2. Wedge-type dead-end clamp

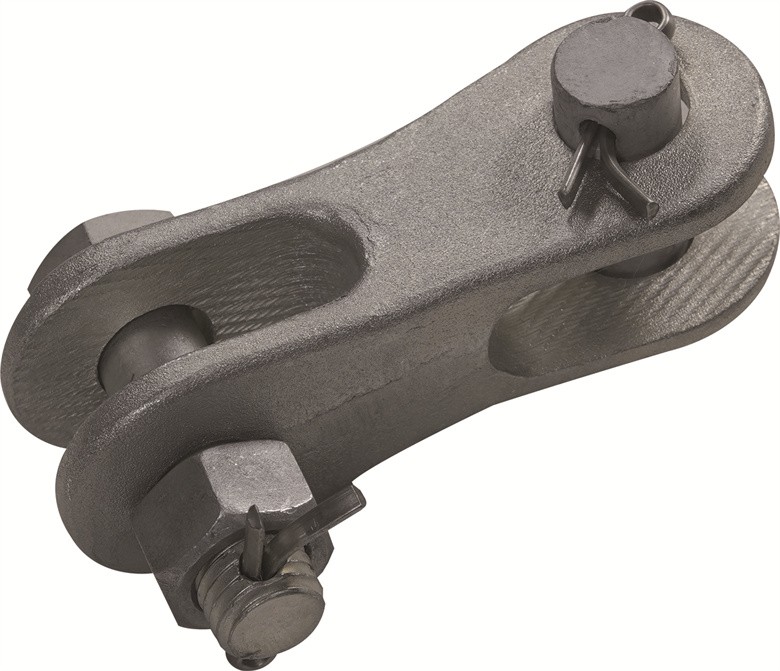

3. cross link

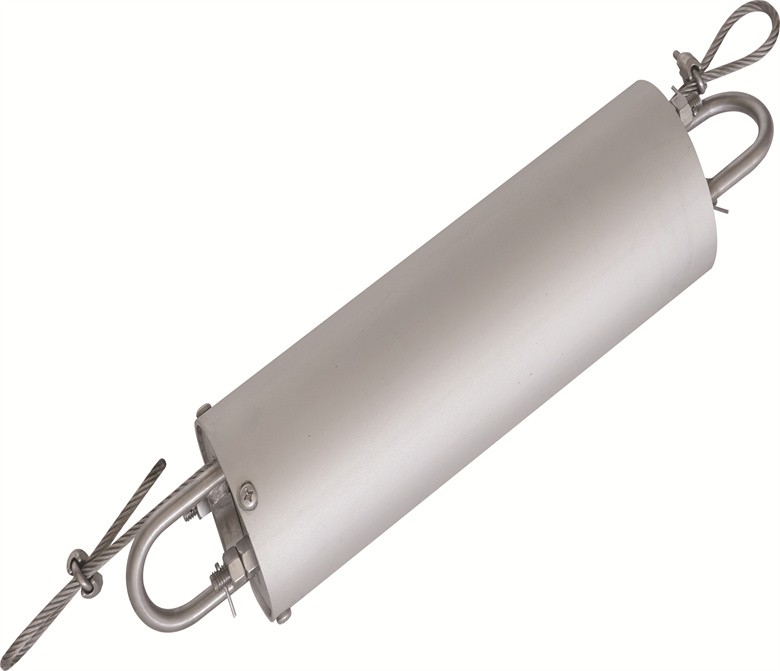

4. spring tensioning device
5. adjustment stud
