Scope of application: A limit type positioning device for fixing the position of the contact wire in the cantilever structure of the electrified railway catenary system.
The limit type positioning device includes a limit locator, a positioning support, a
Limit steady device
Limit steady device: for fixing the position of contact wires in the cantilever structure of electrified railway catenary systems.
Limit steady device including limit steady arm, drop bracket, register arm, equipotential connection line, steady clamp, steady ring, support for registration arm, registration arm drooper, hook clip, wind stay wire, eye for wind stay

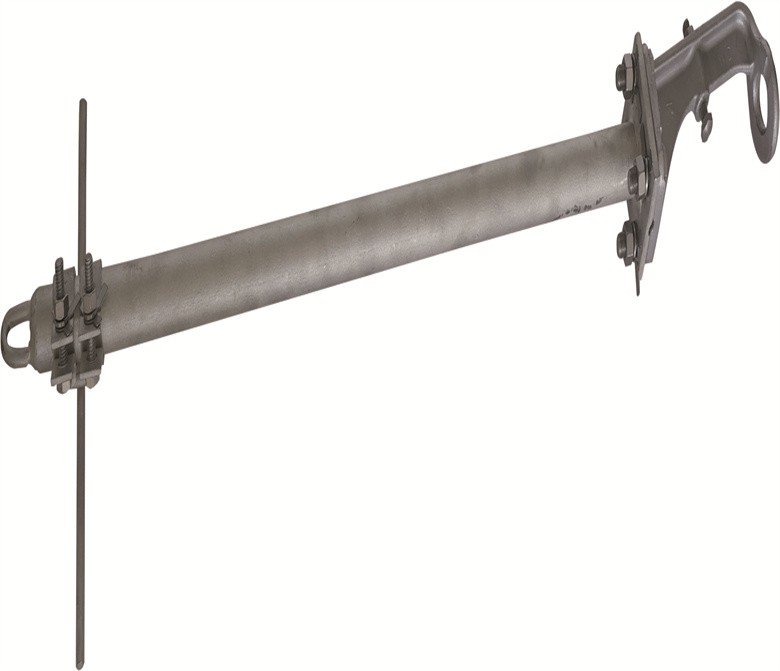

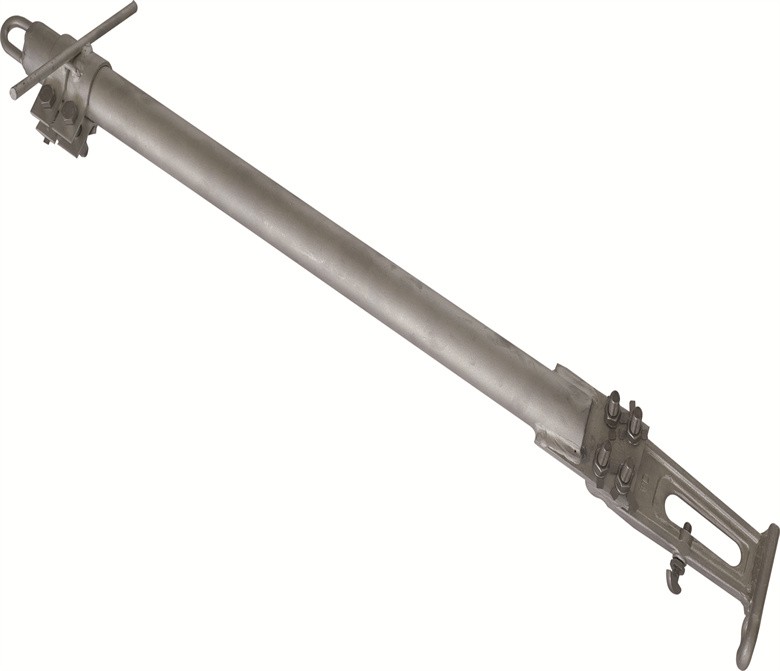

1.Limit steady arm: Limit steady arm type A, Limit steady arm type B

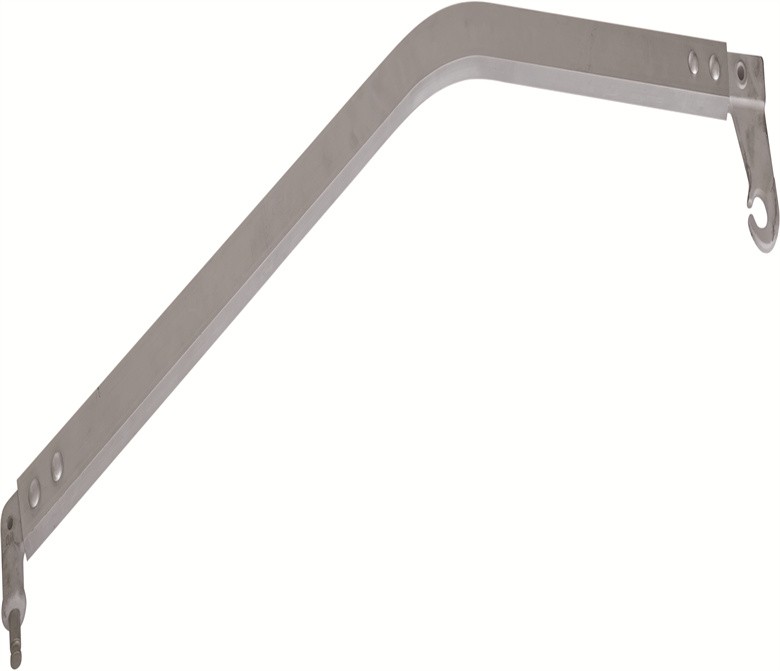

Limit steady arm type A
Limit steady arm type B

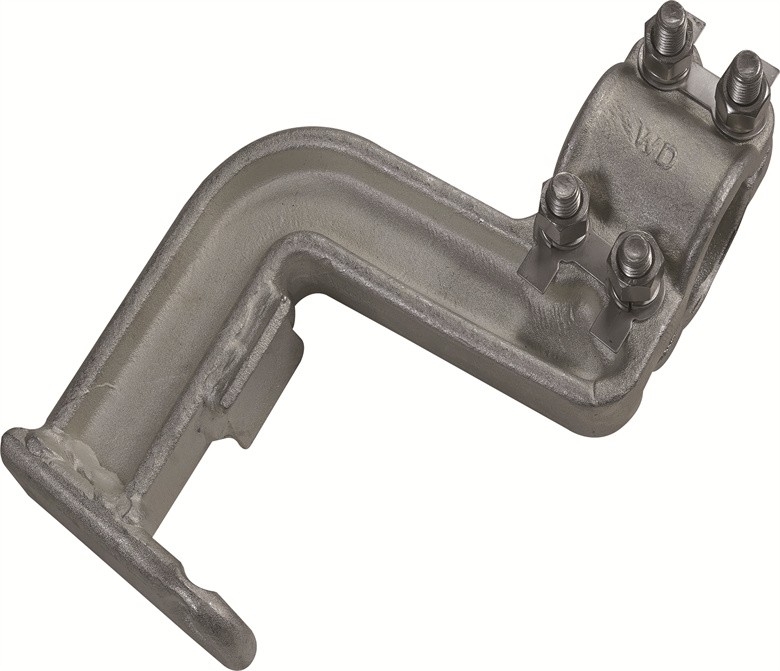

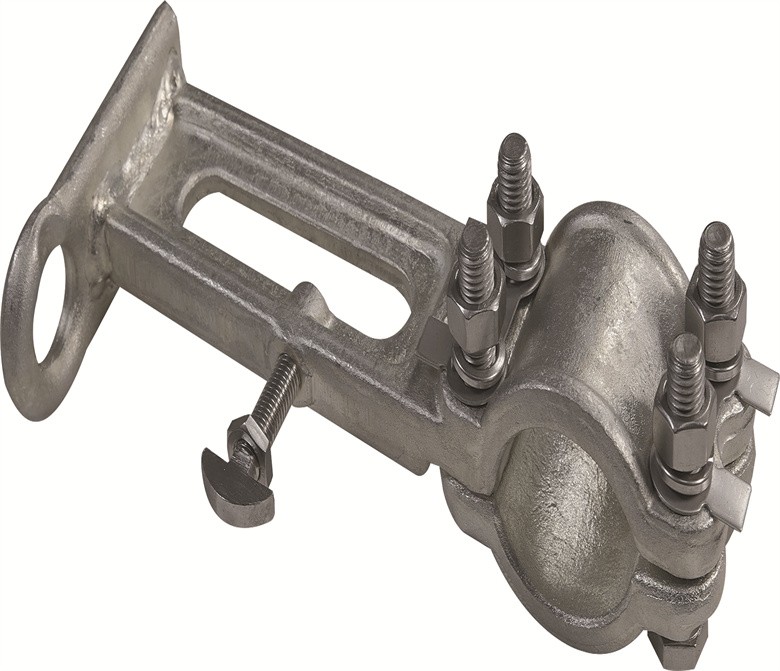

2. Drop bracket: Drop bracket type A, drop bracket type B, drop bracket type D (flexible crosse-bar type)

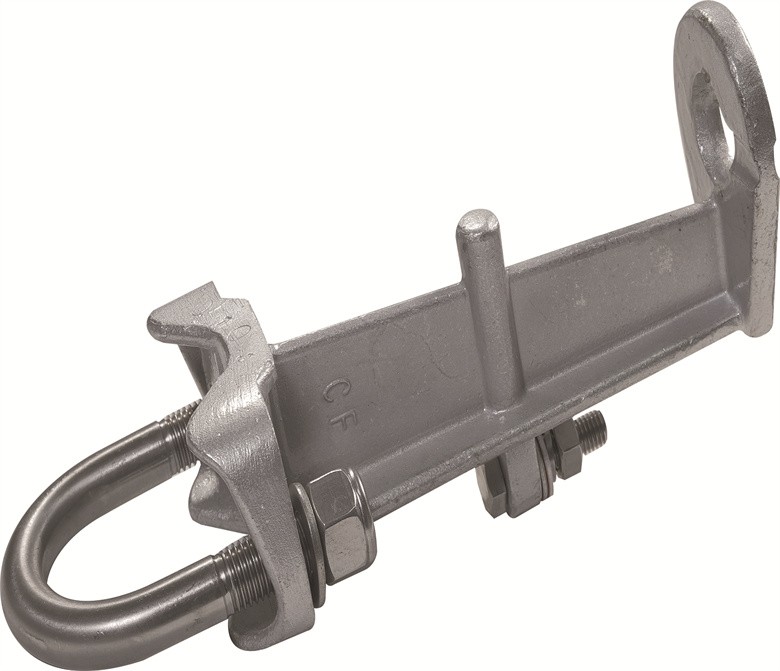

Drop bracket type A (steel)
Drop bracket type A (aluminium alloy)
Drop bracket type B
Drop bracket type D (steel)
Drop bracket type D (aluminium alloy)
3.Equipotential connection line of register arm（缺图）

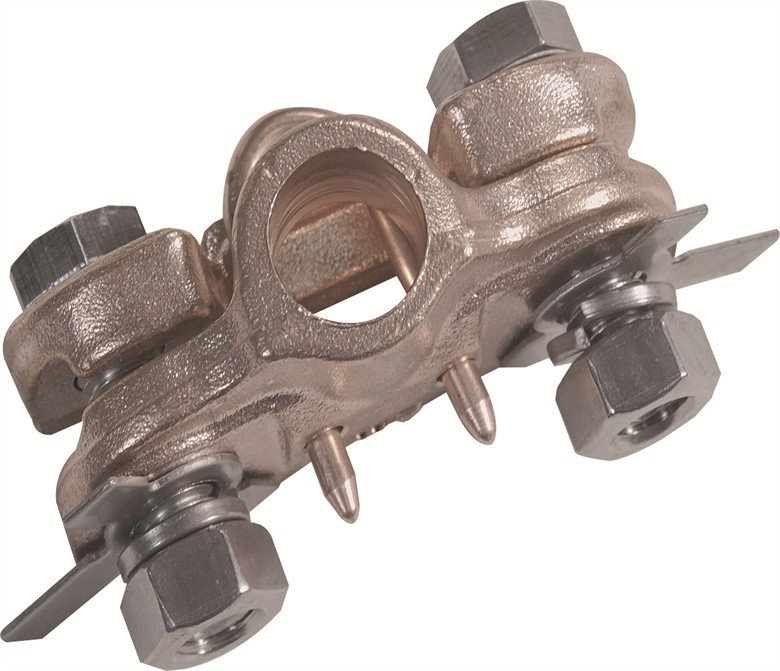

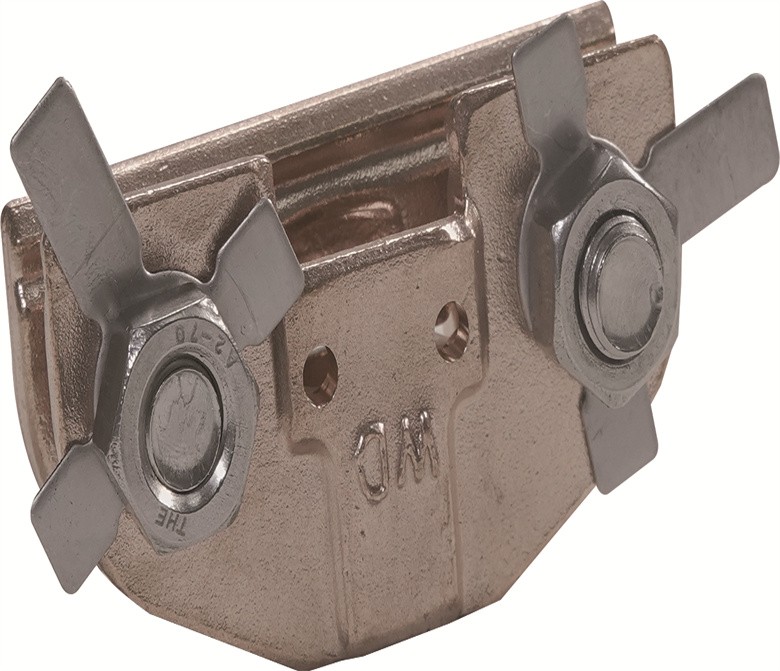

4. Steady clamp: Steady clamp type A
Steady clamp type A（U型销结构）
Steady clamp type A（凸台夹板结构）

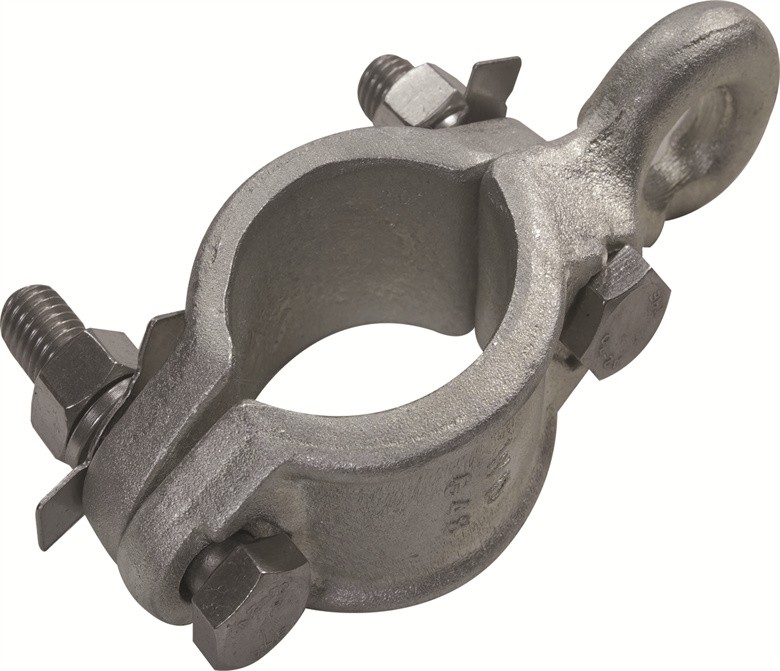

5. Steady ring: Steady ring type A
Steady ring type A
6. Registration tube: Registration tube type A(missing picture)、Registration tube type C(missing picture)
7. Support for registration arm(missing picture)
8. Registration arm drooper(missing picture)
9. Hook clip (missing picture)
10. Wind stay wire(missing image)
11. eye for wind stay (missing aluminum material picture)
